Other Modules

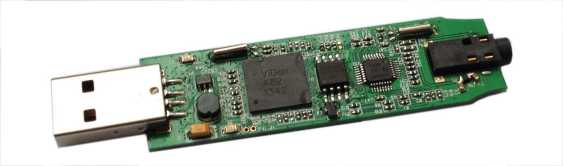

AV to USB module - C8205

This C8205 module accepts CVBS video, convert to USB video streaming and UVC compatible. It is direct plug and play with PC, compatible to some of the Linux kernal.
  • USB2.0 UVCcompatible
  • auto detect PAL/NTSC
  • image size D1
  • powered by PC USB port

OSD Module - GC806

The GC806 OSD module is a small device specially designed for low cost video camera system. it adds data time and string to the video signal and display on TV monitor.
  • UART interface for data input
  • optional 2 keys input for stanlone application
  • RTC
  • data time display
  • data string upto 9 lines

JPEG module - C1098

The C1098 JPEG compression module performs as video camera or a JPEG compressed still camera and be attached to a wireless or PDA host. Users can send out a snap shot command from the host in order to capture a full resolution single frame still picture. The picture is then compressed by the JPEG engine and transferred to the host.
  • UVGA resolution
  • UART interface upto 460Kpbs
  • Built in JPEG codec
  • simple user friendly command
  • low power consumption
  • 3.3V DC operation

PIR module - PIR383E

PIR383E is a small size PIR sensor module with power up inactive time of 30sec, which is good for security application
  • wide operation 3.3V to 5V
  • output high
  • min output duration 2sec
  • operation range upto 5 meter

Voice Recording Module -

A93010A - single section 40 second

A93010A voice recording module offers true single chip solid state storage capability and requires no software or microcontroller support. It provide high quality recording and playback with single 40second message.
  • non volatile flash memory technology
  • upto 40sec high quality audio recording
  • no battery backup requirement
  • build in condenser mic
  • 2-key operation, record and playback
  • 3-6V operation
  • LED to indicate operation status

A96020 - Dual section 20 second

A96020 voice recording module offers true single chip solid state storage capability and requires no software or microcontroller support. It provide high quality recording and playback with dual 20second messages.
  • non volatile flash memory technology
  • slide switch for record and playback
  • no battery backup requirement
  • build in condenser mic
  • separate button for message select
  • 3-6V operation
  • LED to indicate operation status
