muC103 Series

  • by

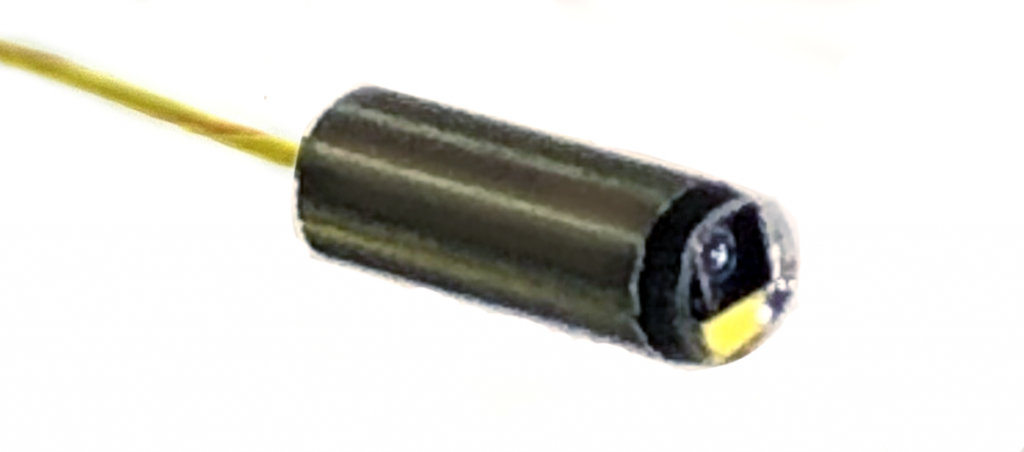

muC103 series is based on OVM6946 which is using the most advance CMOS mixed signal technology. It integrates image array, signal processing, timing and control circuitry, all on a single chip. OVM6946 captures high quality 400 x 400 resolution video at 30 frames per second (fps). It is ideal for applications requiring a small footprint, low power and low cost. It is well-suited to a wide range of  endoscope applications, including medical, veterinarian, and industrial.

ModuleCompatible BackendTip OD(mm)LEDsConnector
muC103TC8262/C8203E1031.506pin
muC103PC8209DP/C8203DP1.5024pin
muC103L1C8209DL/C8203DL2.0124pin
muC103L2C8209DL/C8203DL2.2224pn

muC103T2812

muC103T2812 is a camera module with plastic distal end cap.

Features:

  • Small tip size:2.8mm OD
  • One working channel:1.2mm OD
  • Built-in two leds
  • Resolution: 400×400 pixels
  • Operation voltage 3.3V
  • Low power consumption
  • Cable: 0.58mm OD, 1 – 4 Meters
