This is a family of products based on the most advance CMOS mixed signal technology. It integrates image array, signal processing, timing and control circuitry, all on a single chip. It is ideal for applications requiring a small footprint, low power and low cost.
mCam703
mCam703 is a high-performance camera module which is based on OV9734 that developed by OmniVision Technologies, a leading company in advanced digital imaging solutions. With its compact design and robust features, mCam703 is engineered to cater to applications requiring high-quality imaging in space-constrained environments.
Key Specifications
Frame Rate: Capable of streaming video at 30 frames per second (fps) at full resolution.
Resolution: 1-megapixel sensor with a native resolution of 1280 x 720 pixels, suitable for HD video capture.
Pixel Size: 1.4 µm x 1.4 µm, utilizing OmniVision’s PureCel® technology for enhanced light sensitivity and low-light performance.
Optical Format: 1/9 inch, making it ideal for integration into small form-factor devices.

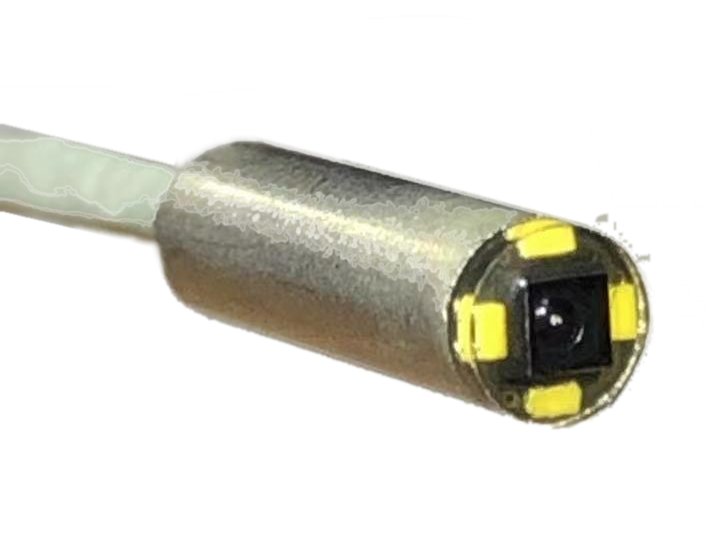

mCamA10
mCamA10 is based on OCHSA10 which is an advanced CameraCubeChip™ module developed by OmniVision, designed primarily for medical applications such as endoscopes and catheters. This compact module measures just 2.6 x 1.6 mm and delivers high-resolution imaging at 800 x 800 pixels with a frame rate of up to 60 fps, or at 400 x 400 pixels at 90 fps. It is powered by OmniVision’s PureCel®Plus-S stacked pixel technology, ensuring high sensitivity, minimal noise, and superior image quality even in low-light conditions.
Key Specifications
- High Image Quality: 800×800 pixles, critical for accurate diagnostic imaging.
- Energy Efficiency: With a low power consumption of just 82.2 mW, it minimizes heat generation, ensuring patient comfort.
- Field of View Options: It offers two configurations: a 120-degree wide-angle view and a 90-degree standard view, tailored for different medical procedures.
- Optical Format: 1/14.25 inch, making it ideal for integration into small form-factor devices.
mCam101
mCam101 features a maximum resolution of 1000×1000, utilizing a high-performance 1.4µm BSI pixel design. It adopts an innovative architecture to support high frame rates.
Key Specifications
- Resolution: 1-megapixel sensor with a native resolution of 1000 x 1000 pixels, suitable for HD video capture.
- Pixel Size: 1.4 µm x 1.4 µm, utilizing BSI technology for enhanced light sensitivity and low-light performance.
- Optical Format: 1/9 inch, making it ideal for integration into small form-factor devices.
| Module | Compatible Backend | Tip OD(mm) | LEDs | Connector |
|---|---|---|---|---|
| mCam703U | C8207/C8203E703 | 3.8 | 2 | micro HDMI |
| mCam703L2 | C8209ML/C8203ML | 3.8 | 2 | 24pin B-B |
| mCamA10L4 | C8209ML/C8203ML | 3.4 | 4 | 24pin B-B |
| mCam101L2 | C8209ML/C8203ML | 3.4 | 2 | 24pin B-B |
