COMedia Ltd.
30 Years in Business
Experienced in Camera Modules
Expertise in Image Quality
New Products:

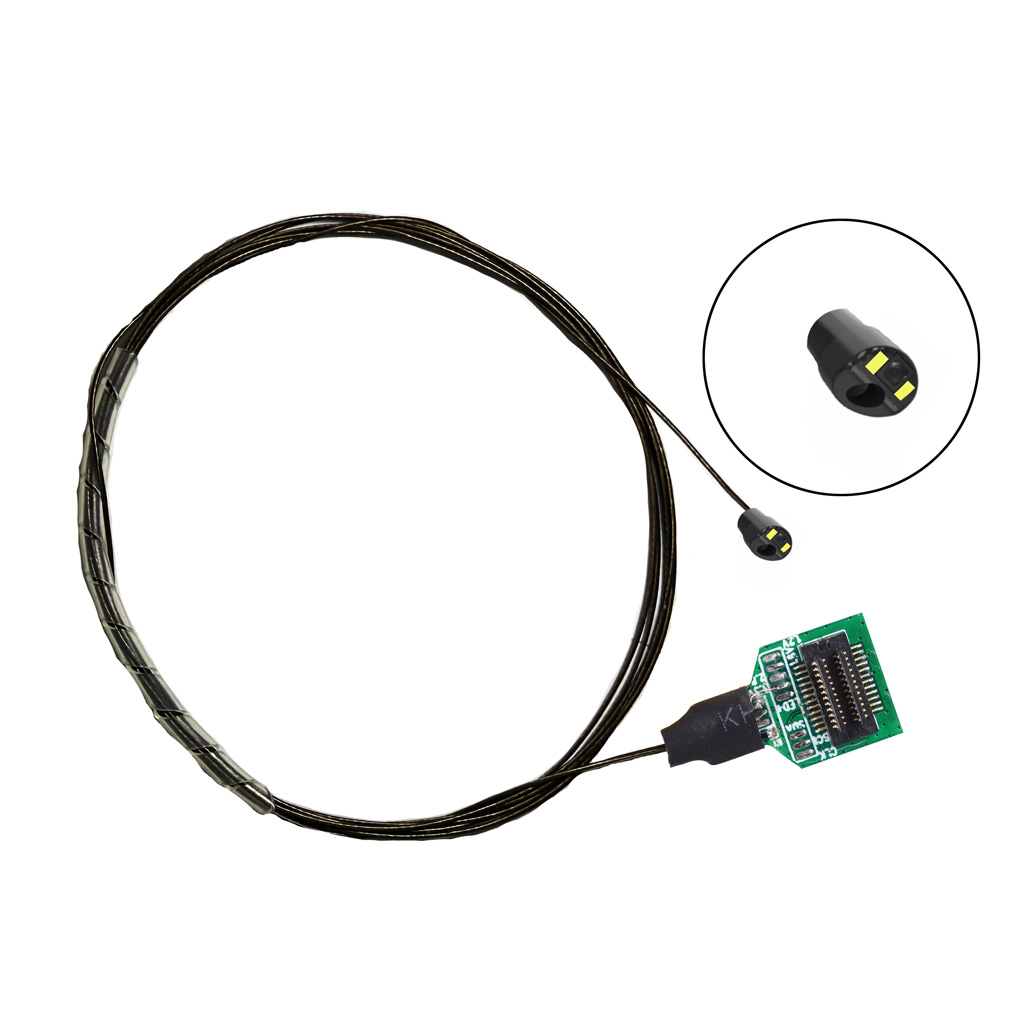

muC103T2812 – OVM6946 camera module with plastic distal end cap
- Small tip size:2.8mm OD
- One working channel:1.2mm OD
- Built-in two leds
- Resolution: 400×400 pixels
- Operation voltage 3.3V
- Low power consumption
- Cable size: 0.58mm OD
- Cable length: 1 – 4 Meters
- Compatible with C8203DL and C8209DL

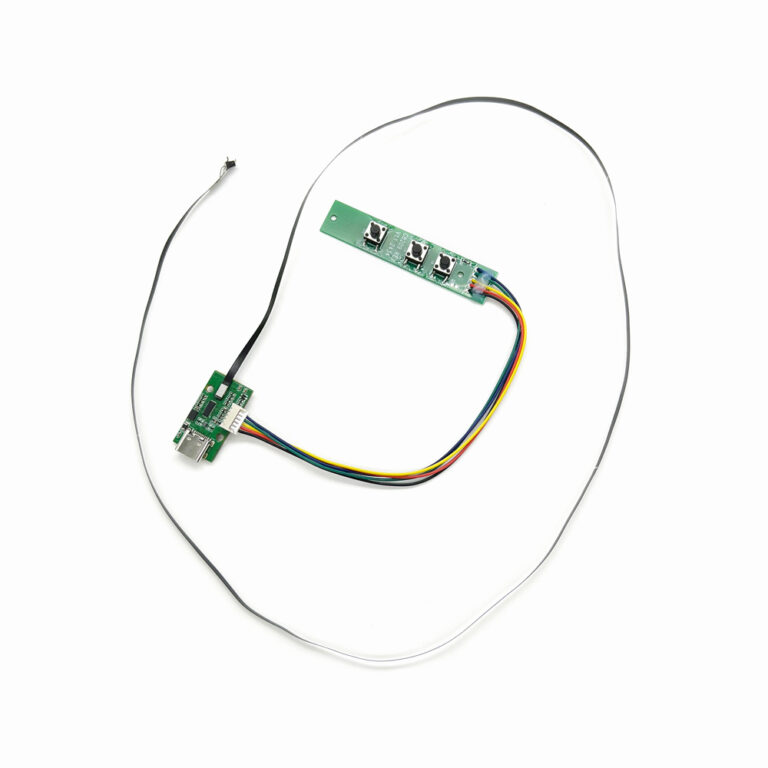

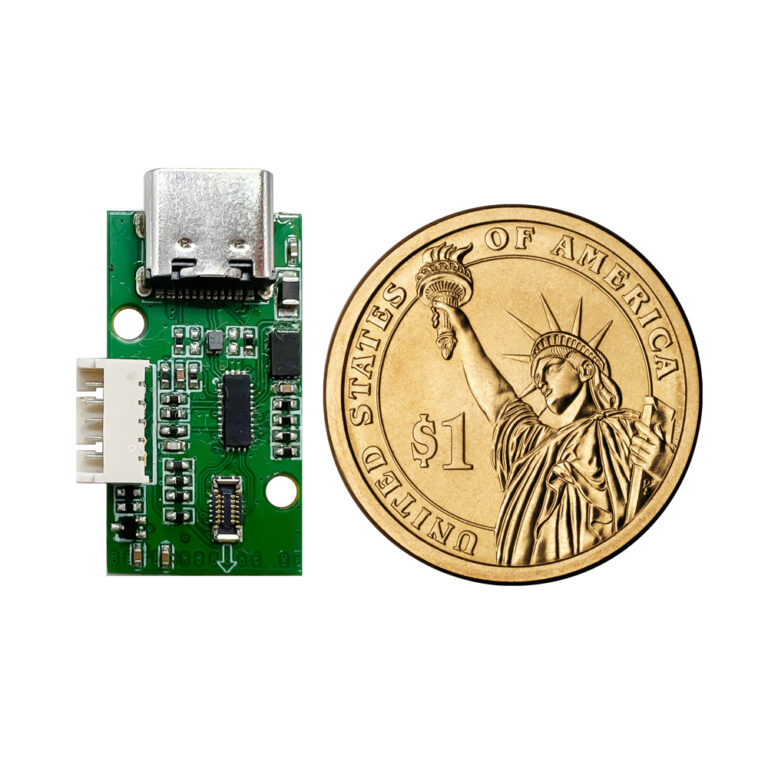

UCSPF1 – Low cost one mega pixels usb camera
- Small board size (26mm x 14mm)
- One mega pixels fpc camera(1280×720)
- USB TYPE-C connector (USB2.0)
- Snapshot
- White balance calibration
- UVC compliant, Plug & Play
- Two LEDs on camera’s tip

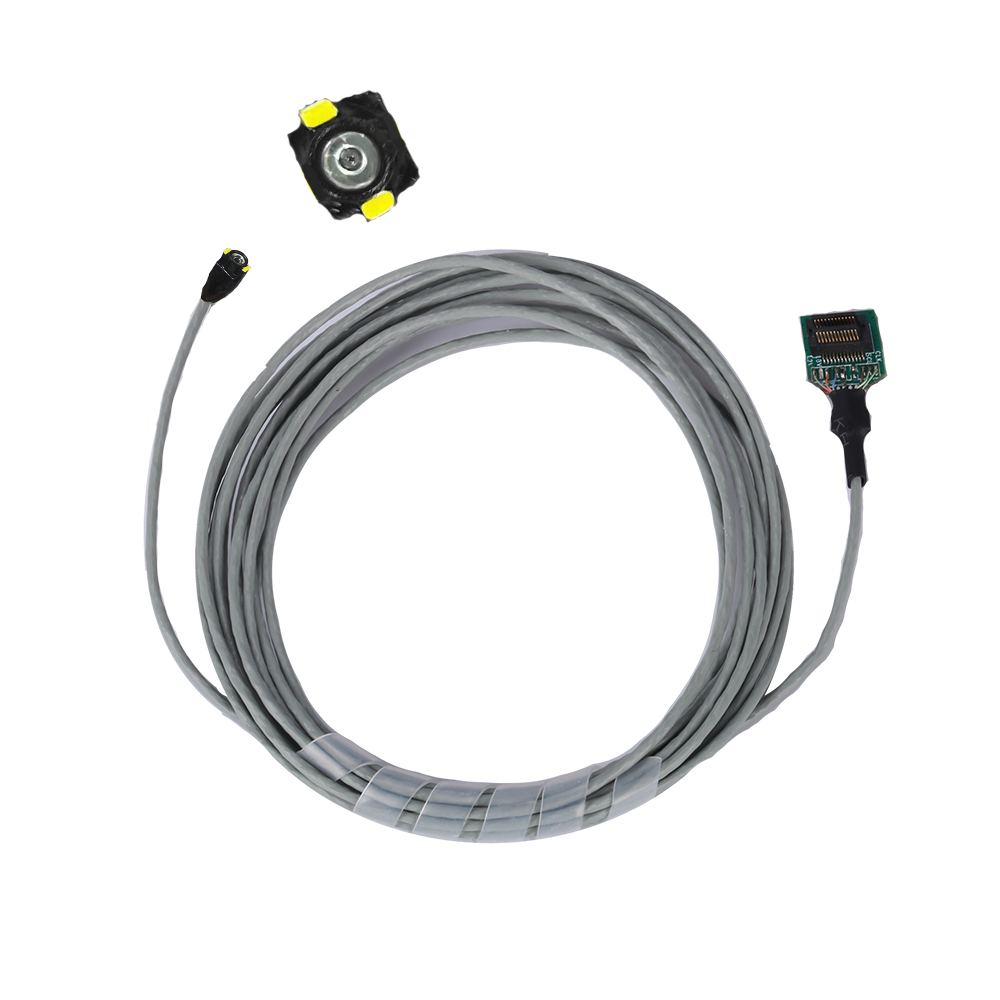

mCam101L2
New released 1000×1000 high resolution camera module mCam101L2. It is compatible with C8203ML and C8209ML
One mega pixels endoscope camera mCam101L2 is a 1/9″ for the rapidly growing disposable medical endoscope market. It is small in size and high resolution, an ideal upgrade for bronchoscopes, ureteroscopes and hysteroscopes. With 1000 x 1000 resolution at 60 frames per second, it provides the best image quality for improved patient outcomes.
This one mega pixels endoscope camera adopts innovative architecture to support high frame rate, sensor support full frame mode ,skip mode,binning mode and other formats output, compatible with lvds and mipi image output mode, to meet the needs of more programs.
USB backend:C8209DM
HDMI backend:C8203DM
- 4 models: C8209DP/C8209DL/C8209MP/C8209ML
- USB Video Compatible (UVC), no driver is required for PC
- Auto detect different types of micro camera
- C8209DP is capable to drive external 1W power LED at constant current
- C8209DL/C8209M has built in LED control circuit for SMD LED installed at the tip of micro camera
- 4 models: C8203DP/C8203DL/C8203MP/C8203ML
- Real-time 1280×720@60fps Video output to HDMI
- Auto detect different types of micro camera
- C8203DP is capable to drive external 3W power LED at constant current
- C8203DL/C8203M has built in LED control circuit for SMD LED installed at the tip of micro camera
- 12VDC operation
- Image capture and AVI recording capable
Thermal camera release
C1028 – Thermal Camera with UART interface
The C1028 thermal camera module has been special designed for serial communication. It integrates a thermal sensor array and image processor to provide temperature map thru UART interface. User can capture a thermal image and read out pixel temperature data remotely thru serial cable, by simple command.
- Thermal sensor in 80×62 pixel
- Per pixel temperature output
- Baud rate up to 921K
- User friendly commands
- Small in size
- 5V operation
- Low power consumption
CTC01 – Thermal Camera with TFT interface
The CTC01 thermal camera module has been special designed for hand-held use. It integrates a thermal sensor array and image processor to display temperature color mapping on a square TFT. It assembles the core board, battery, TFT and lens together on several acrylic plates.
- Thermal sensor in 80×62 pixel
- pixel temperature with different color mappings
- Display resolution 240×240
- 4 Keys operation
- Small in size
- 4.2V battery operation
- Save RGB565 bmp to TF card
